Industry Leading High-Power Cutting
The World's Fastest Rack & Pinion Laser
Automation and Storage Towers with Thick Plate Options
Built with the Best Components, Backed by the Best Service
The fastest rack and pinion laser made. RevolutionX cuts at an incredible 7.5 holes per second and 11,000 ipm.
3 to 60kW options available, allowing for cutting up to 3″ and faster cut speeds on thinner plate.
Select a cutting gas of your choice based on thickness, edge quality requirements, availability and cost. Our experts will walk you through all the trade-offs.

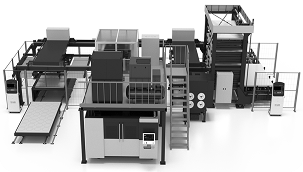

Titan AutoLoader and Towers maximize productivity on the RevolutionX. An optional third pallet location enables automation and plate processing on one machine. Learn More
Every key component is specified and controlled by Fairmont, ensuring premium performance without the “brand name” mark-up.
The key to profitability is machine up-time. With Fairmont GreenLight Service™, you can be sure to receive “the best service and support [you’ve] ever experienced.”
| Machine Type | Enclosed flatbed fiber laser cutting machine |
|---|---|
| Available Cutting Envelopes | 5 x 10, 6.5 x 13.1, 8 x 20, 8 x 26 ft. |
| Z-Axis Travel | 7 in. (180 mm) |
| Laser Power Options | 3, 6, 8, 12, 20, 30, 40, 60 kW |
| Maximum Cutting Thickness | Varies by laser power, material, and assist gas. Learn More |
| X/Y Traverse Speed | 11,000 ipm (280 m/min) |
| Acceleration | 3g |
| X/Y Positional Accuracy | ±0.0012 in. per 3 ft. |
| X/Y Repeatability | 0.0008 in. |
| Bevel Motion (Option) | 45° ± 0.1° |
| Incoming Power Protection | Included |
| A/C for Laser Source & Electrical | Included |
| Handheld Operator Pendant | Included |
| Work Bed Capacity | Weight equivalent to 2.3 in. (60 mm) thick steel over entire envelope |
| Safety System | Laser scanners & human detection camera |
| Drive System | Helical rack and pinion |

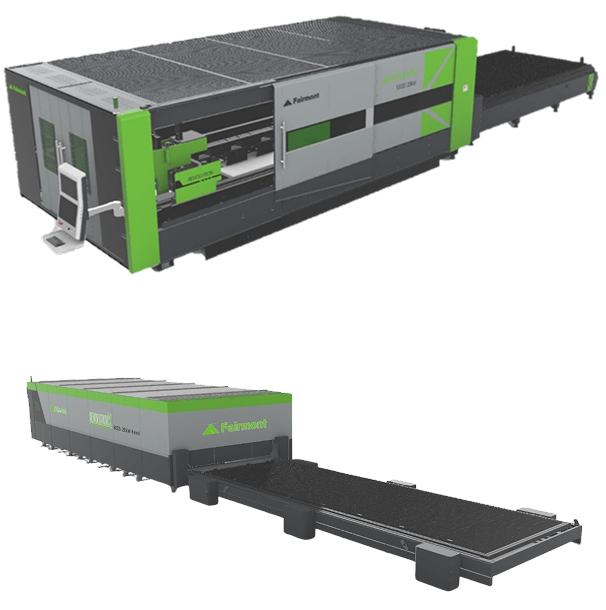

| Automatic Pallet Changer | High speed or heavy duty options |
| Automation Compatibility | Titan AutoLoader and TitanTowers |
At Fairmont Machinery, we know equipment up-time is the key to productivity. There is nothing slower than a down machine. While many seem unconcerned with supporting their customers after a sale, we take a different approach at Fairmont.
Our hotline is staffed by senior service engineers who answer the phone 92% of the time. All our machines are equipped with video monitoring, so we can solve your problem and get you running as fast as possible. We have service offices across the USA.
Experience the difference with Fairmont.
