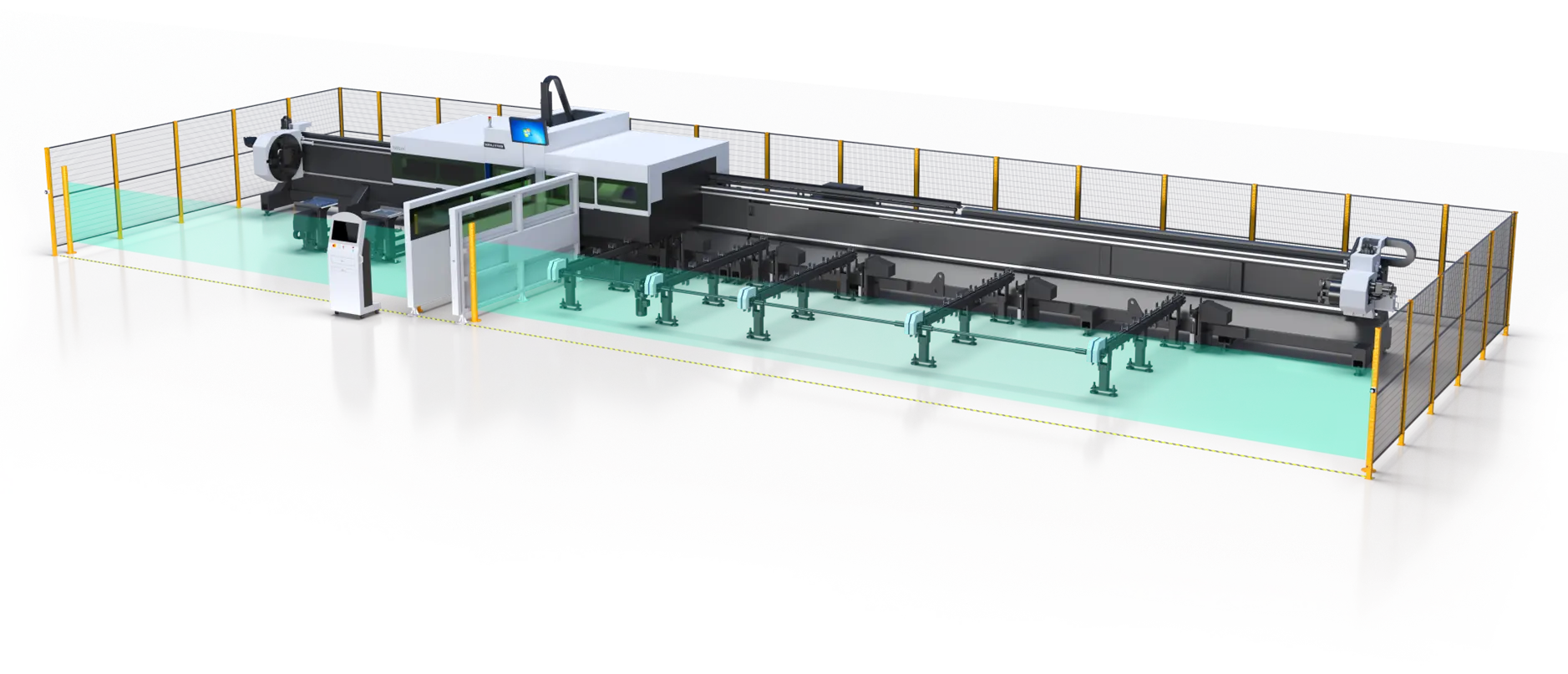

+/- 45°, all pipe and profile shapes
26" diameter, 40' loading & unloading
Available with 3 or 4 chuck machines
Semi and Full Automatic Options Available
Select the power option to match your application. RevolutionTL cutting heads are designed to last, even at 20kW.

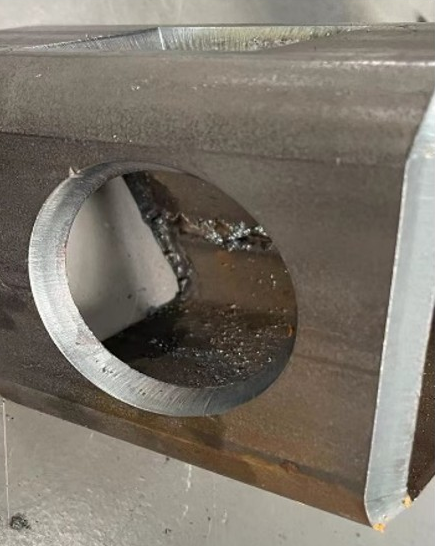

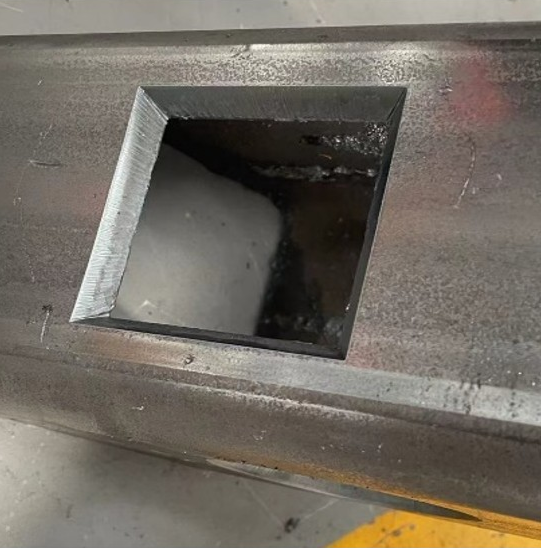

45° bevel cutting toward and away from the chuck on all tubes and profiles and at all power levels.
Capable of handling 26″ pipe weighing up to 6600 lbs. More capacity than you need, but not more than you want.

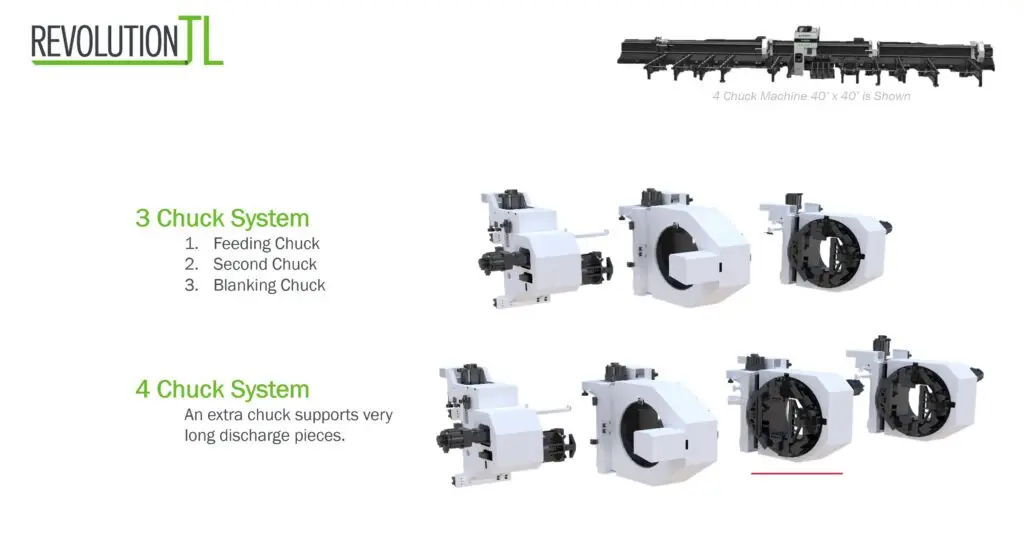

Available with three or four chucks systems. Utilize every inch of your expensive material.

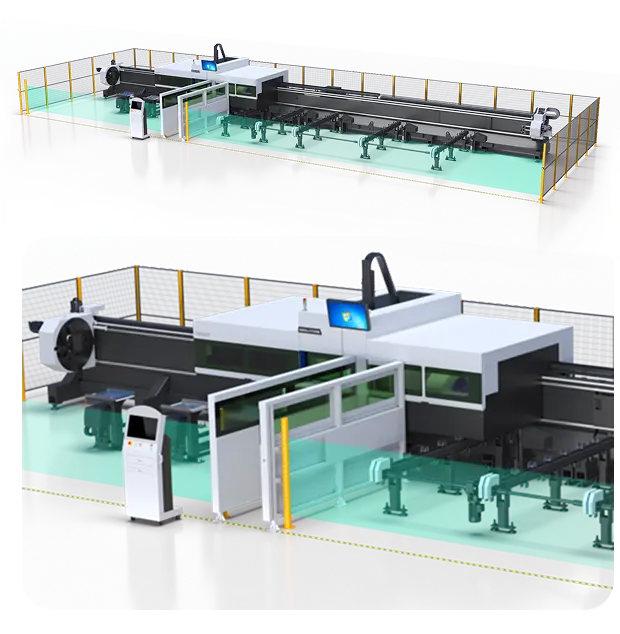

Easy loading of huge pipe and profiles onto the automatic feeding system. The machine does the rest.

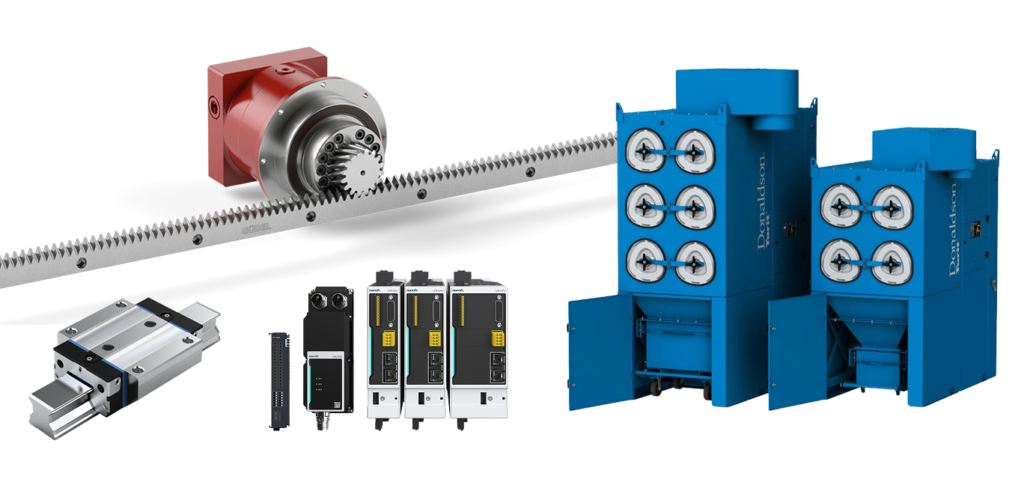

Every key component is specified and controlled by Fairmont, ensuring premium performance without the “brand name” mark-up.
The key to profitability is machine up-time. With Fairmont GreenLight Service™, you can be sure to receive “the best service and support [you’ve] ever experienced.”

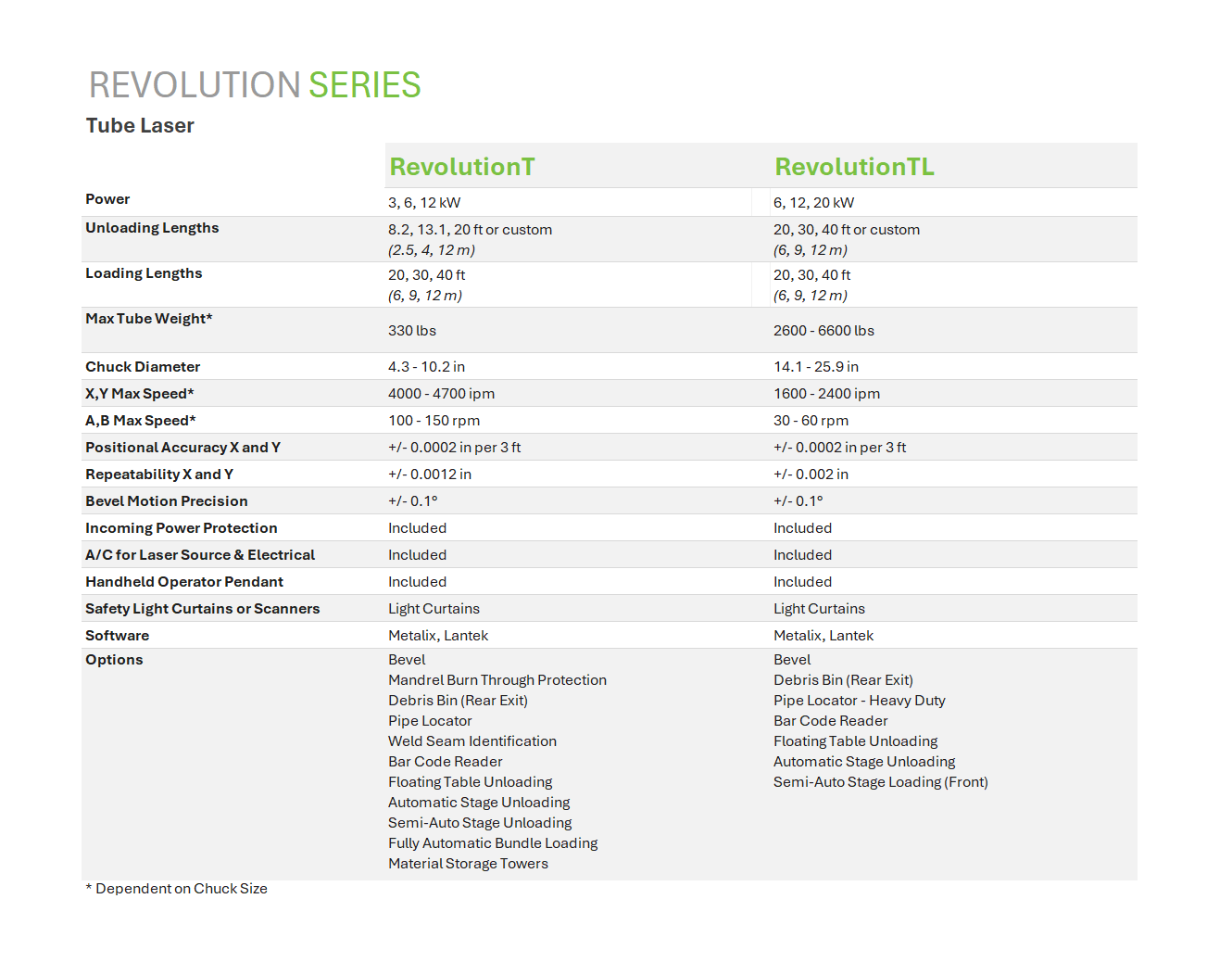

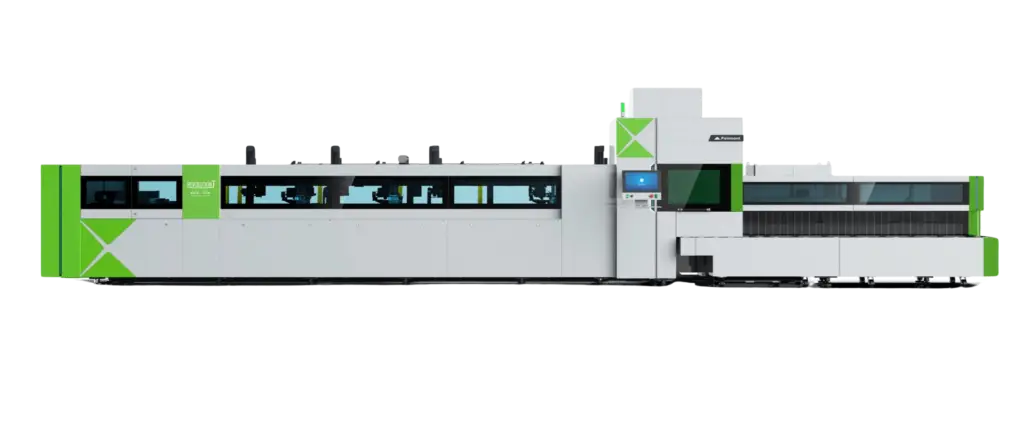

| Machine Type | Heavy-duty fiber laser for large tube, pipe and structural profiles |
|---|---|
| Laser Power Options | 6–20 kW. Learn More |
| Maximum Round Tube Diameter | Up to 26 in. (660 mm) |
| Maximum Material Weight | Up to 6,600 lbs. (3,000 kg) with four-chuck configuration |
| Loading Length | Up to 40 ft. |
| Unloading Length | Up to 40 ft. |
| Chuck Configuration | Three- and four-chuck configurations. Learn More |
| Zero-Scrap Cutting | Available with three- or four-chuck configurations |
| Supported Profiles | Round & rectangular tube, pipe, I-beams, H-beams and channels |
| Bevel Cutting (Optional) | 45° ± 0.1° |
| Loading Automation | Semi-automatic stage loading. Learn More |
| Unloading Options | Single-part unloading standard; automated unloading available |
| Tube Support | Support system for long, heavy tube and structural profiles |
At Fairmont Machinery, we know equipment up-time is the key to productivity. There is nothing slower than a down machine. While many seem unconcerned with supporting their customers after a sale, we take a different approach at Fairmont.
Our hotline is staffed by senior service engineers who answer the phone 92% of the time. All our machines are equipped with video monitoring, so we can solve your problem and get you running as fast as possible. We have service offices across the USA.
Experience the difference with Fairmont.
