The Fastest Cycle Times in the Industry
Semi and Full Automatic Options Available
Industry Leading Sealed Mechanical Chucks
Built with the Best Components, Backed by the Best Service
The shortest cycle times in the industry powered cut speeds above 4500 inches per minute.
All the power needed to cut thin wall tube at high speed. Incredible head reliability and consistent production, day-in and day-out.
Automatic bundle loading from the rear or semi-automatic loading from the front of the machine.
The fully sealed design provides longevity and reliability. Mechanically driven chucks work in pairs to automatically center tube stock
Every key component is specified and controlled by Fairmont, ensuring premium performance without the “brand name” mark-up.
The key to profitability is machine up-time. With Fairmont Greenlight Service™, you can be sure to receive “the best service and support [you’ve] ever experienced.”

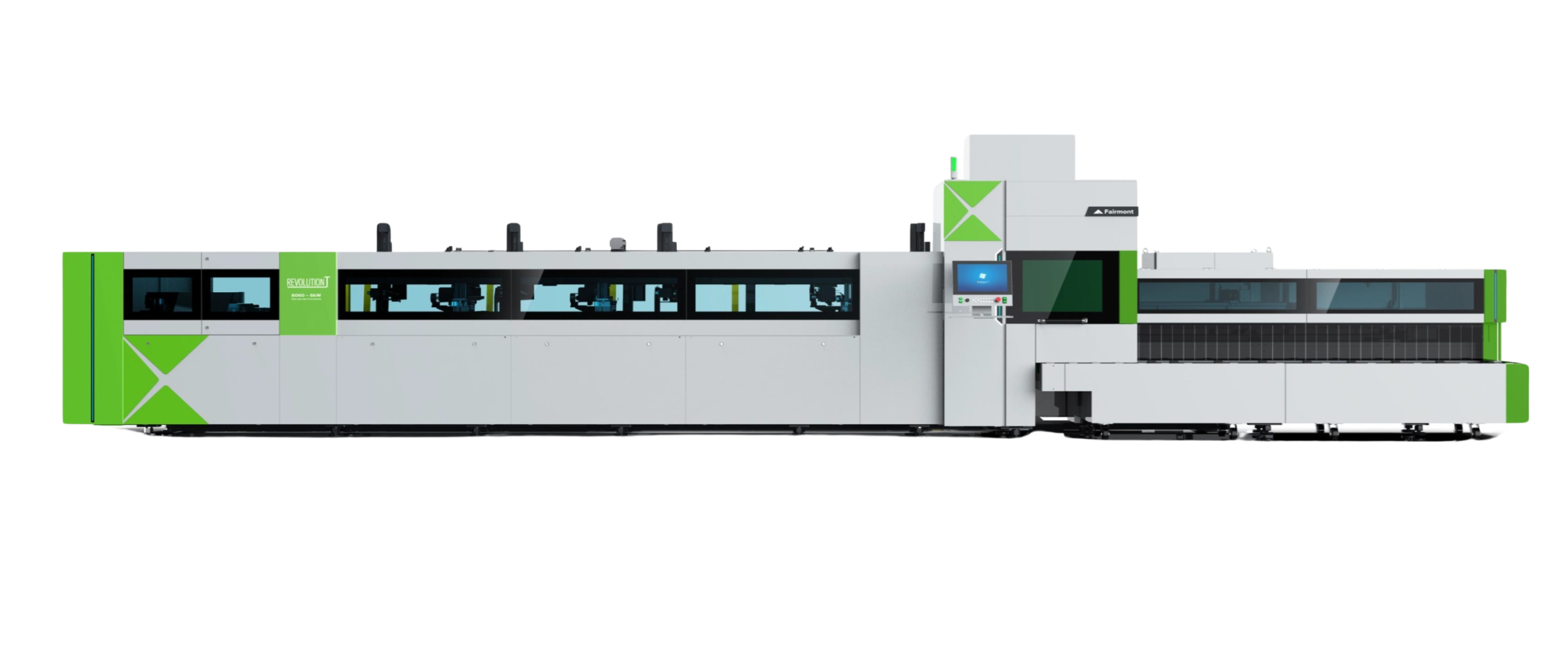

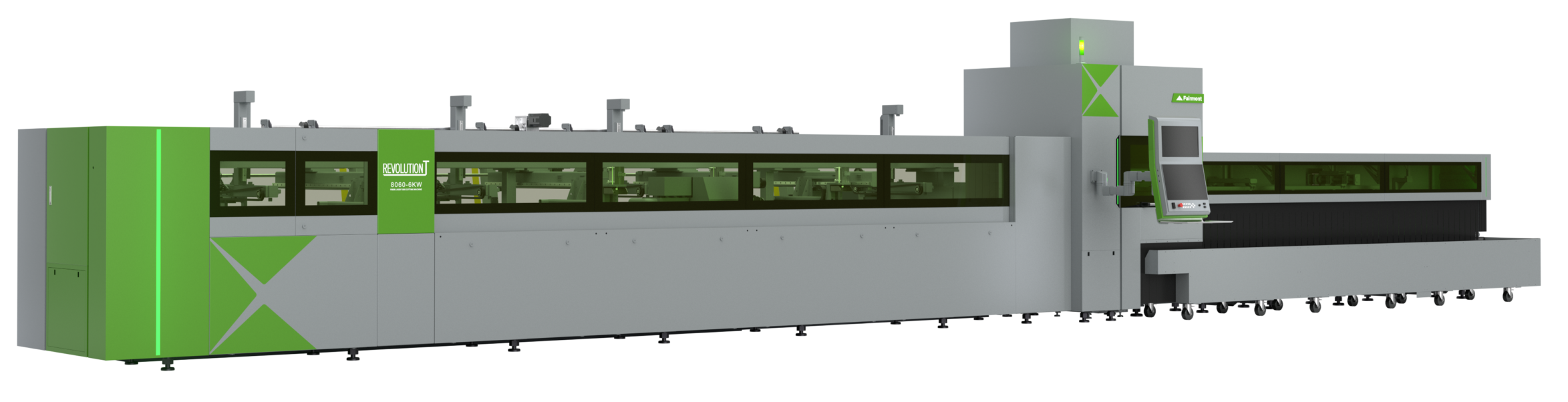

| Machine Type | High-speed fiber laser tube cutting machine |
|---|---|
| Laser Power Options | 3, 6, 12 kW. Learn More |
| Chuck Configuration | Two sealed, self-centering mechanical chucks. Learn More |
| Chuck Diameter Range | 4.3–10.2 in., depending on configuration |
| Maximum Tube Weight | Up to 330 lbs., depending on chuck selection |
| Loading Lengths | 20, 30, 40 ft. |
| Unloading Lengths | 8.2, 13.1, 20 ft. or custom |
| X/Y Maximum Speed | 4,000–4,700 ipm, depending on configuration |
| A/B Maximum Rotational Speed | 100–150 rpm, depending on configuration |
| X/Y Positional Accuracy | ±0.002 in. per 3 ft. |
| X/Y Repeatability | 0.0012 in. |

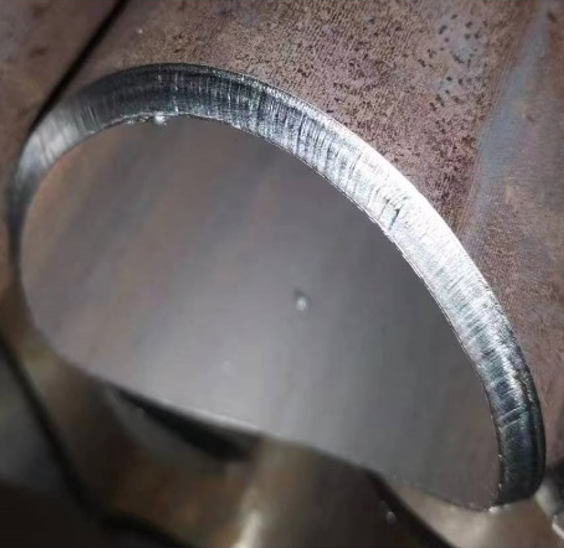

| Bevel Cutting (Optional) | 45° ± 0.1° |
| Loading Automation | Automatic bundle loading or semi-automatic front loading. Learn More |
| Unloading Options | Floating table or semi-automatic stage unloading |
| Safety System | Light curtains |
At Fairmont Machinery, we know equipment up-time is the key to productivity. There is nothing slower than a down machine. While many seem unconcerned with supporting their customers after a sale, we take a different approach at Fairmont.
Our hotline is staffed by senior service engineers who answer the phone 92% of the time. All our machines are equipped with video monitoring, so we can solve your problem and get you running as fast as possible. We have service offices across the USA.
Experience the difference with Fairmont.
