Laser speeds on plasma thicknesses & sizes
Industry leading high-power cutting
+/- 45°, large envelope sizes
Easy loading, high-capacity
Load and process like a plasma but with the speed and quality of laser. Ideal for high-power bevel cutting.

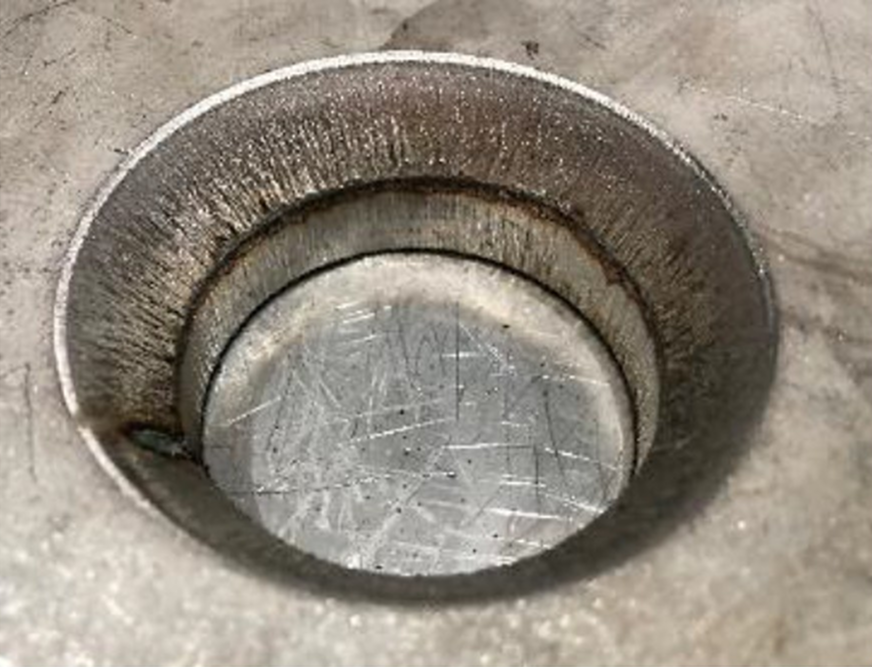

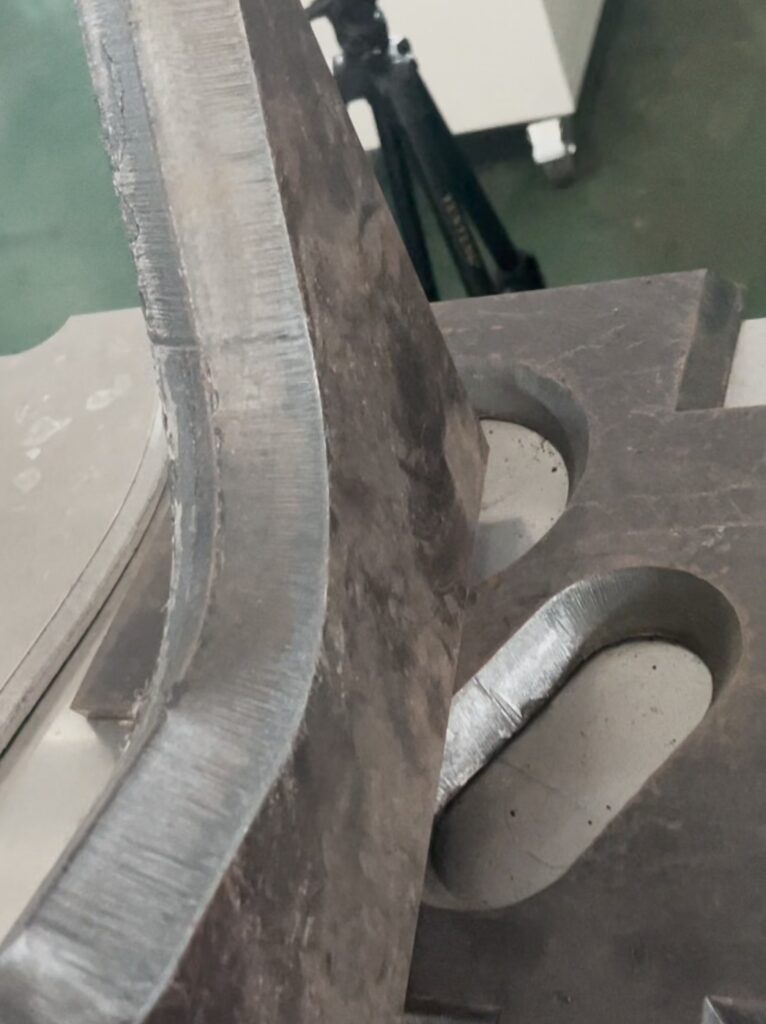

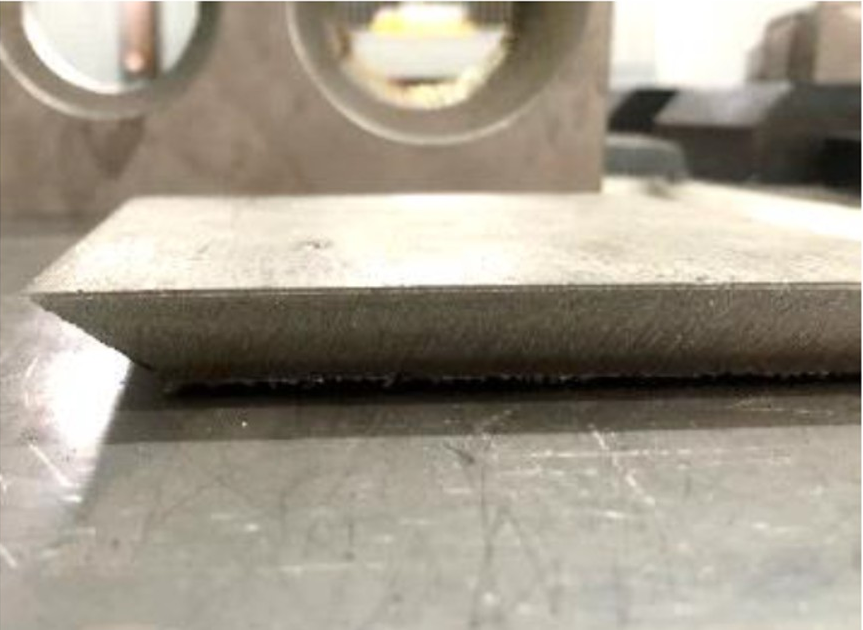

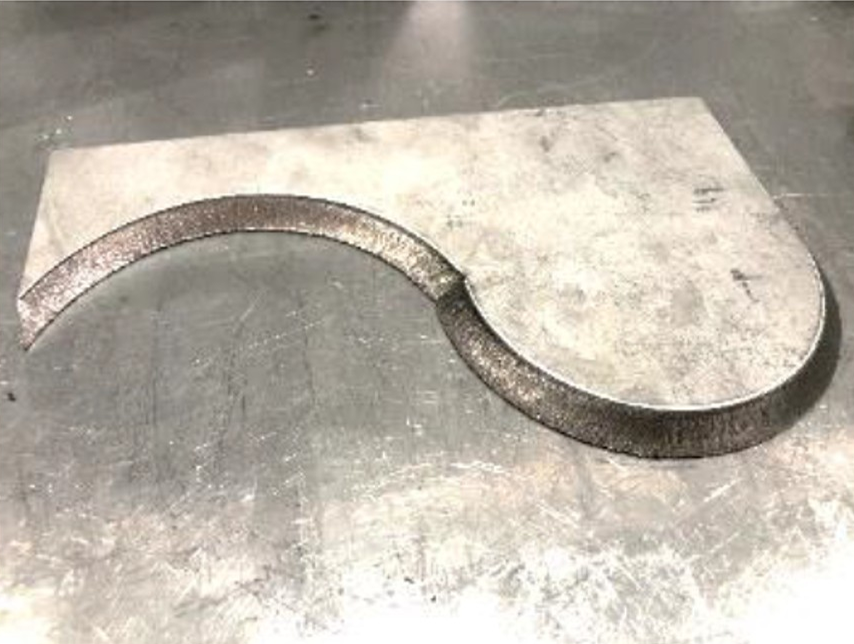

45 bevel cutting for all power levels. Large envelope sizes allows for bevel cutting of standard size sheets.
3 to 60kW options available, allowing for cutting up to 3″ and faster cut speeds on thinner plate.

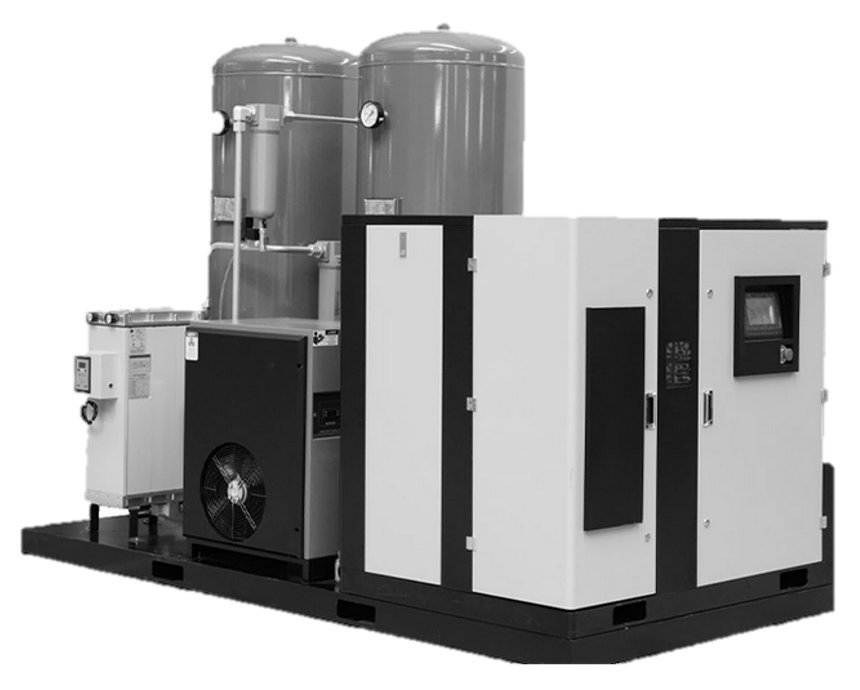

Select a cutting gas of your choice based on thickness, edge quality requirements, availability and cost. Our experts will walk you through all the trade-offs.
Every key component is specified and controlled by Fairmont, ensuring premium performance without the “brand name” mark-up.
The key to profitability is machine up-time. With Fairmont GreenLight Service™, you can be sure to receive “the best service and support [you’ve] ever experienced.”

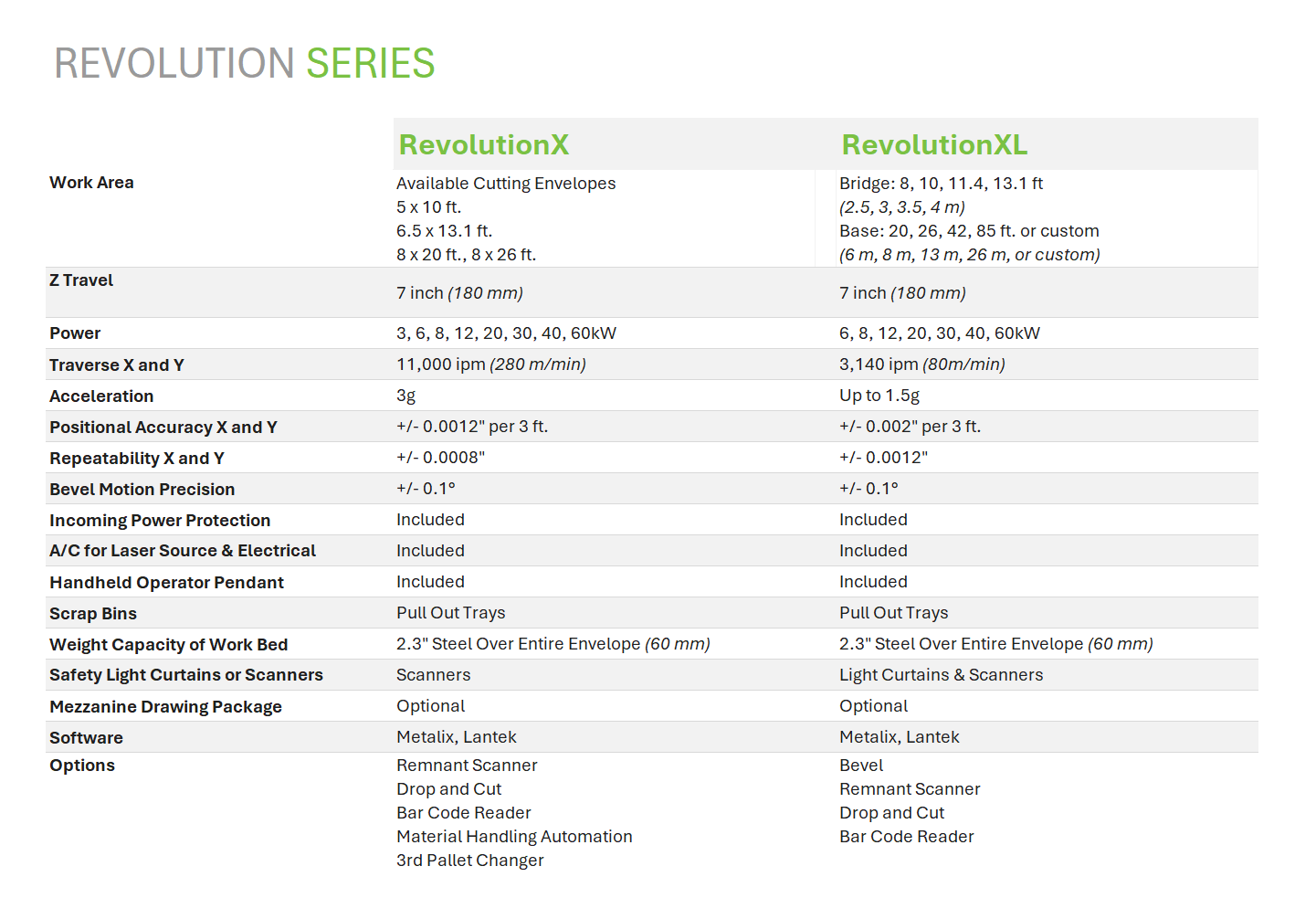

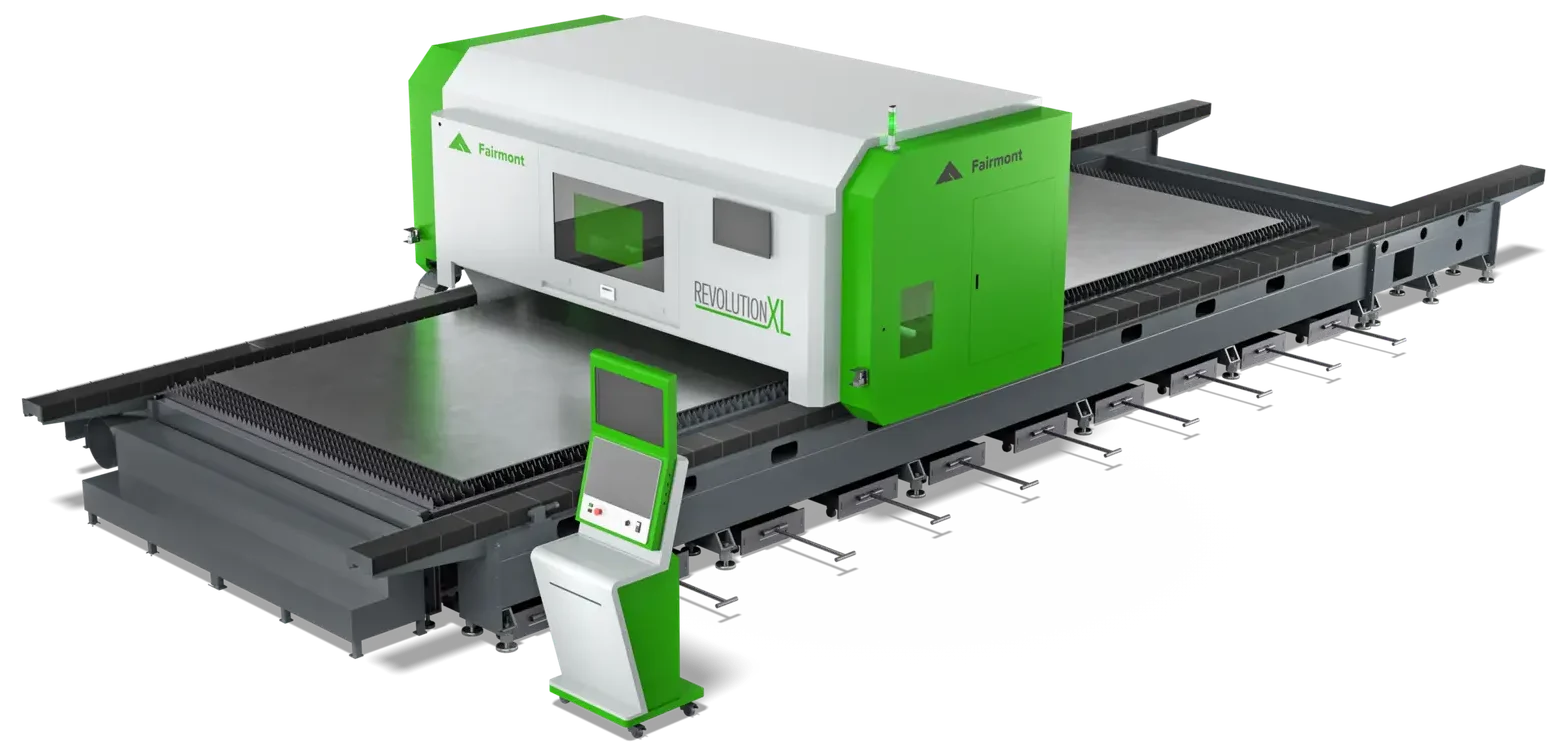

| Machine Type | Heavy-duty, open-table fiber laser cutting machine |
|---|---|
| Bridge Widths | 8, 10, 11.4, 13.1 ft. |
| Base Lengths | 20, 26, 42, 85 ft. or custom |
| Z-Axis Travel | 7 in. (180 mm) |
| Laser Power Options | 3, 6, 8, 12, 20, 30, 40, 60 kW |
| Maximum Cutting Thickness | Varies by laser power, material, and assist gas. Learn More |
| X/Y Traverse Speed | 3,140 ipm (80 m/min) |
| Acceleration | Up to 1.5g |
| X/Y Positional Accuracy | ±0.002 in. per 3 ft. |
| X/Y Repeatability | 0.0012 in. |
| Bevel Motion (Option) | 45° ± 0.1° |
| Incoming Power Protection | Included |
| A/C for Laser Source & Electrical | Included |
| Handheld Operator Pendant | Included |
| Scrap Handling | Pull-out scrap bins |
| Work Bed Capacity | Weight equivalent to 2.3 in. (60 mm) thick steel over entire envelope |
| Safety System | Light curtains and laser scanners |

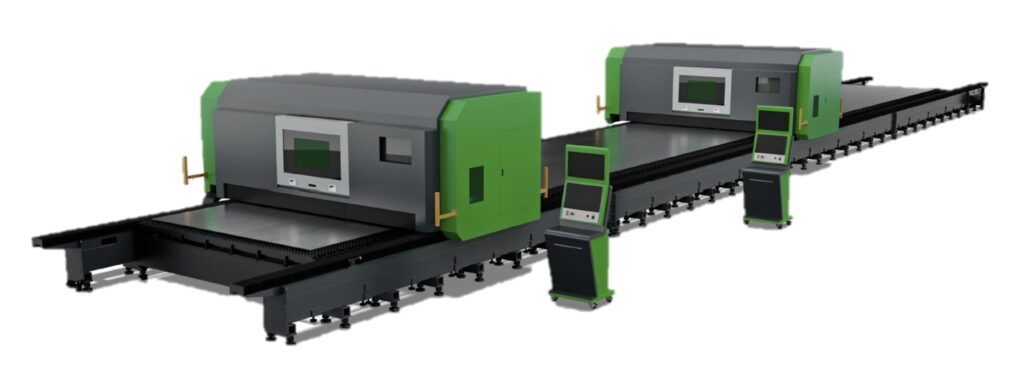

| Multiple Bridges / Cutting Heads | Optional |
At Fairmont Machinery, we know equipment up-time is the key to productivity. There is nothing slower than a down machine. While many seem unconcerned with supporting their customers after a sale, we take a different approach at Fairmont.
Our hotline is staffed by senior service engineers who answer the phone 92% of the time. All our machines are equipped with video monitoring, so we can solve your problem and get you running as fast as possible. We have service offices across the USA.
Experience the difference with Fairmont.
